10 Most Important Roadway Signs with Meaning
TL;DR: California uses the same Federal Highway Administration sign standards as every other U.S. state. The 10 signs every California driver must recognize on sight: Stop, Yield, Speed Limit, Do Not Enter, Wrong Way, School Zone, Railroad Crossing, Signal Ahead, Merge, and Lane Ends. This guide explains each sign's shape, color, federal MUTCD designation, what action it requires, and the California Vehicle Code section that backs it. The DMV knowledge test asks about every one — knowing them cold is the cheapest study win.
Sign categories
Federal highway signs fall into three broad categories. The California knowledge test draws from all three:
| Category | Shape & color | Purpose |
|---|---|---|
| Regulatory | White rectangle, black text / red and white | Tells you what you must do (stop, yield, speed limit) |
| Warning | Yellow diamond / fluorescent yellow-green diamond | Warns of a hazard or condition ahead |
| Guide | Green rectangle / blue services rectangle | Tells you where you are or where things are |
1. Stop Sign
Shape: Octagon (8 sides) — the only octagonal sign in U.S. traffic engineering
Color: Red with white letters
Action: Come to a complete stop at the white limit line (or before the crosswalk / intersection if no limit line)
Preparing for your DMV test?
Download our free iOS app — 1,164+ practice questions in 11 languages, flashcards, and offline study!
The driver of any vehicle approaching a stop sign at an intersection must come to a complete stop. The stop must be made at a limit line, or if there is none, at the entrance to the crosswalk on the near side of the intersection. Stopping past the line counts as a violation.

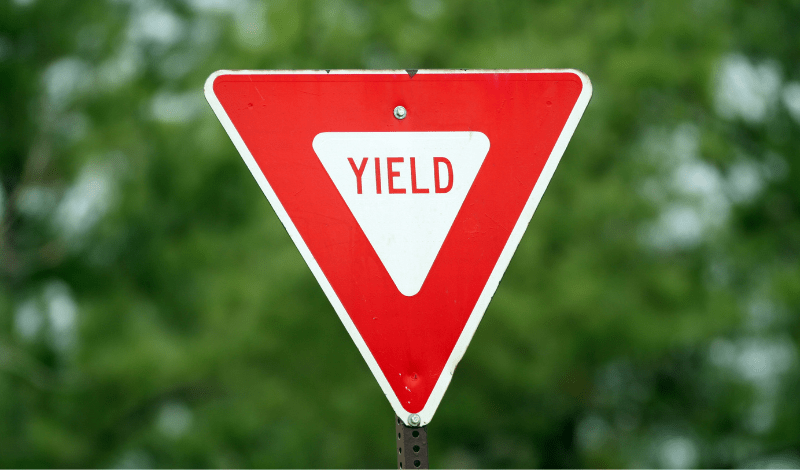

2. Yield Sign
Shape: Equilateral triangle pointing down
Color: Red border, white interior
Action: Slow down and yield to cross traffic and pedestrians. Stop only if a stop is necessary to yield safely.
Common locations: highway on-ramp merges, T-intersection minor approaches, roundabout entries.

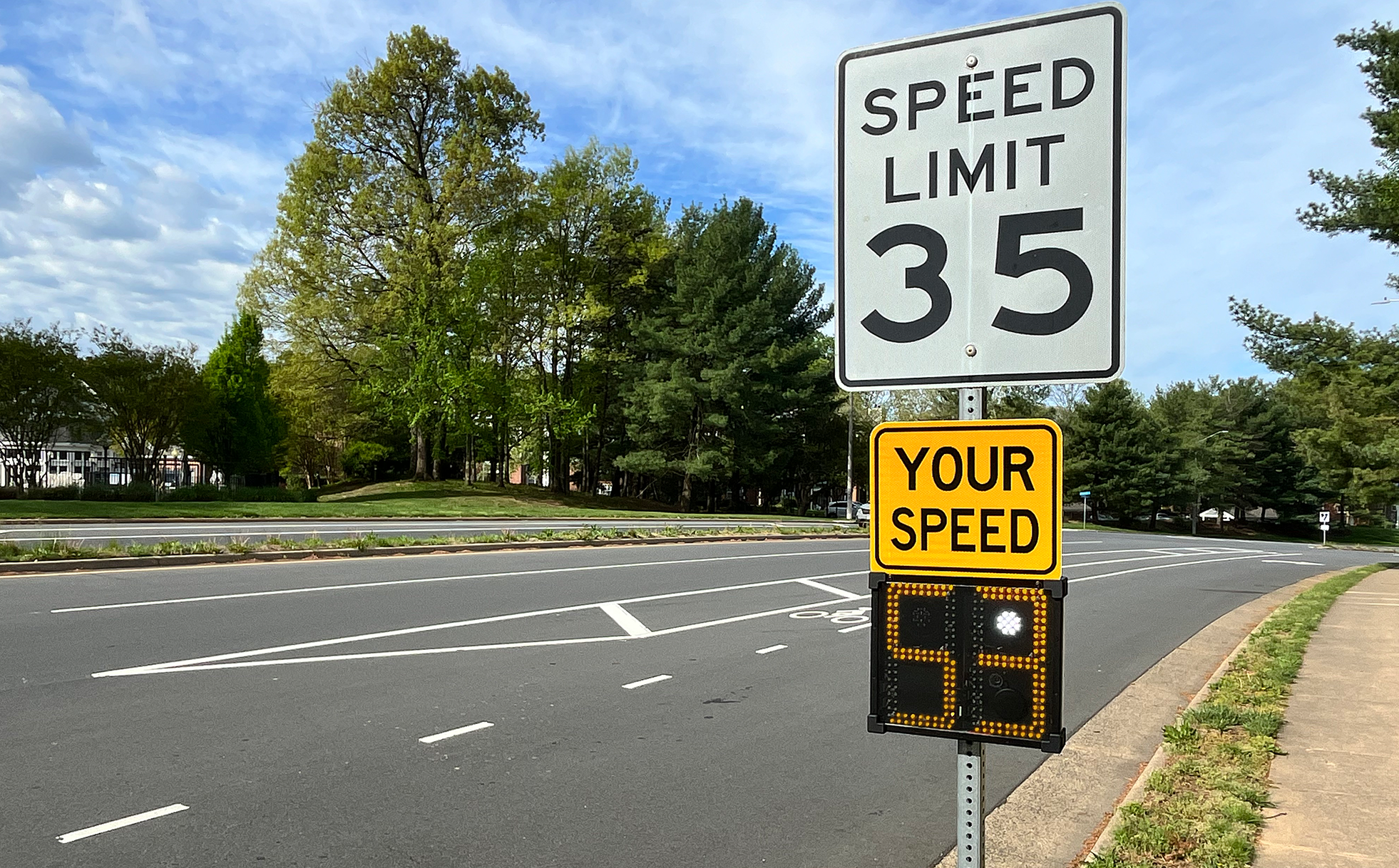

3. Speed Limit Sign
Shape: Vertical rectangle
Color: White with black text
Action: Drive at the posted limit; the limit is the maximum, not a recommendation.
California Vehicle Code §22349 sets a default maximum of 65 mph on most state highways, 70 mph where specifically posted, and 55 mph on two-lane undivided rural highways unless posted otherwise.

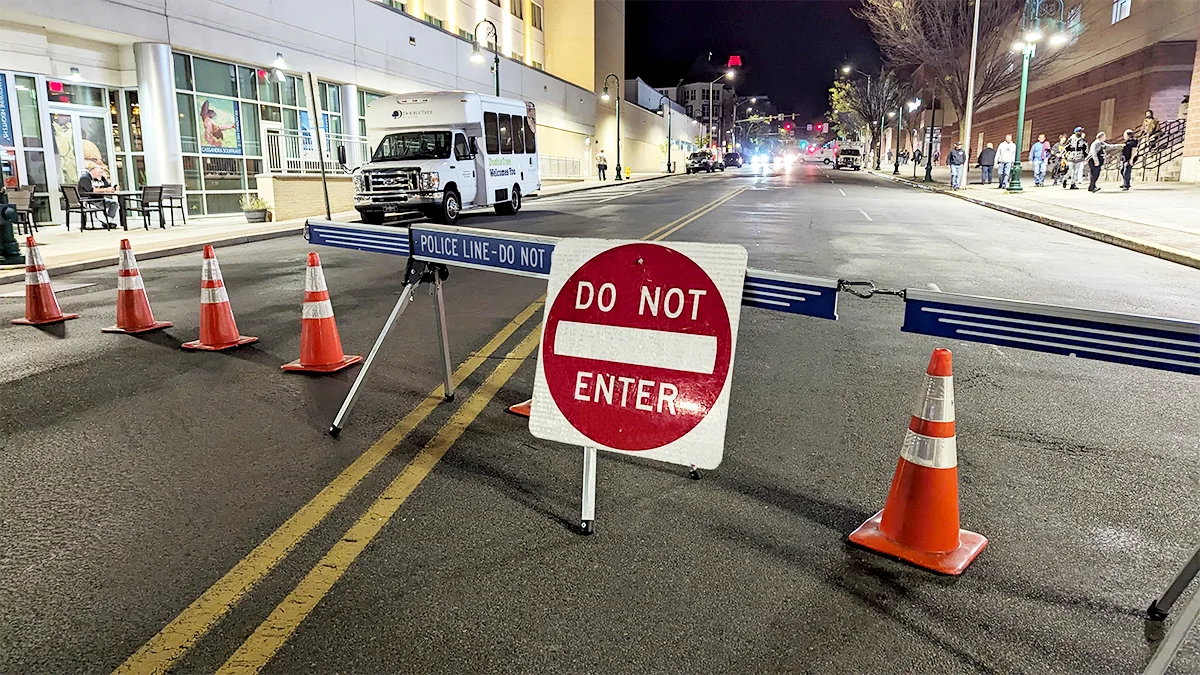

4. Do Not Enter
Shape: Square
Color: Red circle with white horizontal bar; "DO NOT ENTER" text below
Action: Do not proceed into the road or driveway beyond the sign. Usually posted at one-way street exits and freeway off-ramps.

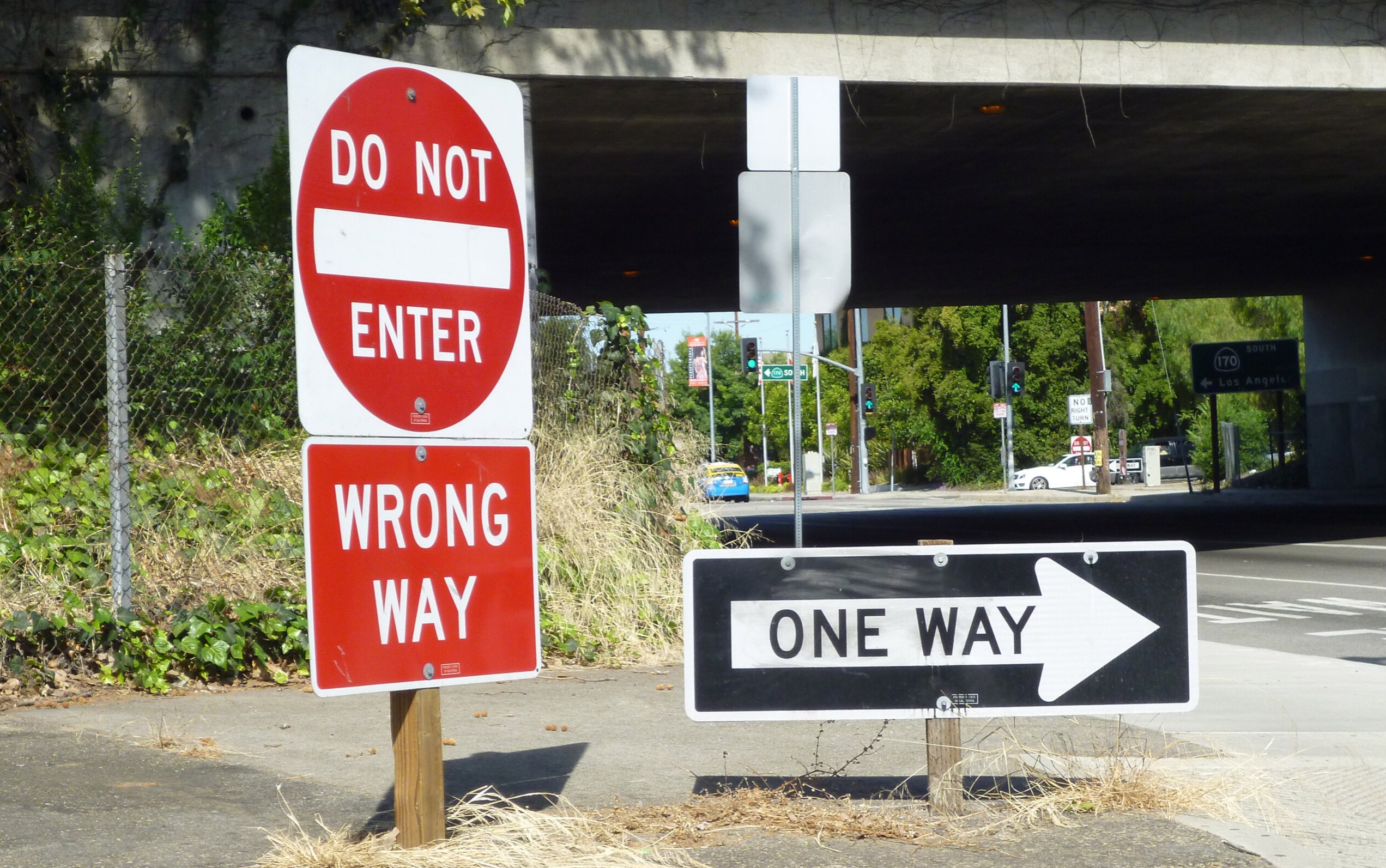

5. Wrong Way
Shape: Rectangle
Color: Red with white text "WRONG WAY"
Action: You are heading the wrong direction on a one-way road. Stop immediately, find a safe place to turn around, and reverse direction.
Wrong-way signs are paired with Do Not Enter signs at most freeway off-ramps. Seeing both at once is a critical safety warning.

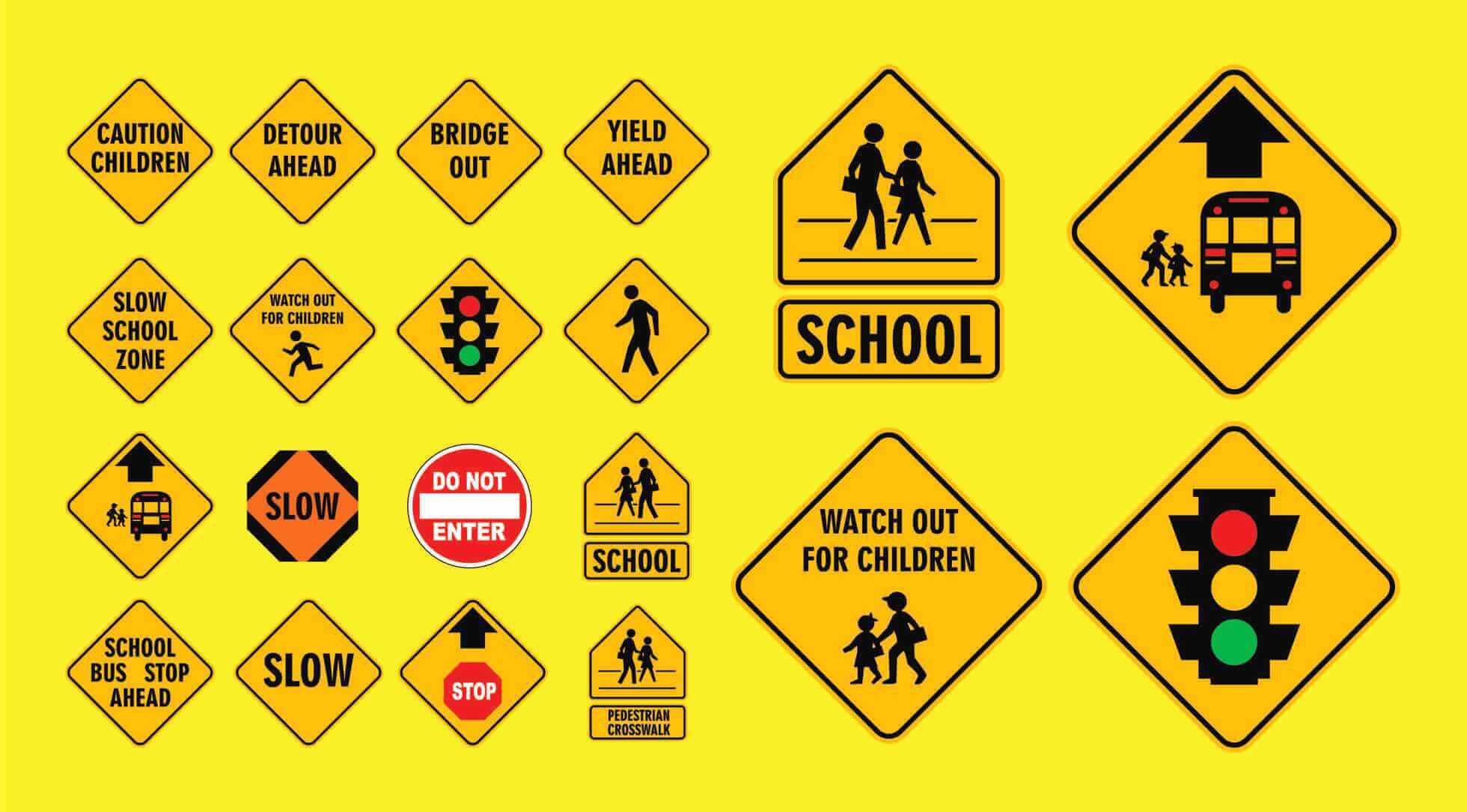

6. School Zone
Shape: Pentagon (5 sides) — the school sign is the only pentagonal sign
Color: Fluorescent yellow-green with black symbol of children walking
Action: Reduce speed to 25 mph (CVC §22352) when school is in session or when children are present. Watch for pedestrians.
The 25 mph rule applies within 500 feet of the school entrance, even if you do not see children. Examiners always include a school zone on the test route.

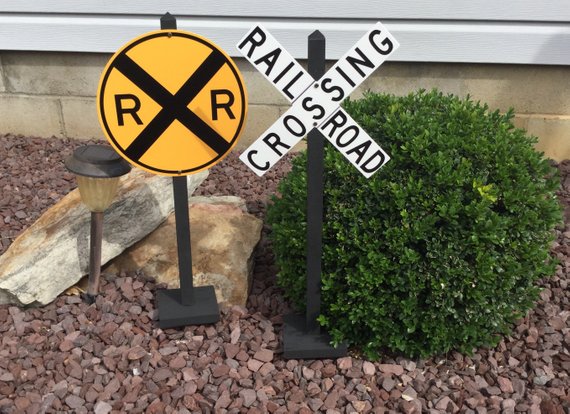

7. Railroad Crossing
Shape: Circle (advance warning, yellow) and crossbuck (the X-shaped white sign at the actual crossing)
Color: Yellow circle with black "RR" text + black X; crossbuck is white with black letters
Action: Approach with caution. Stop if signals are flashing, gates are descending, or a train is visible. Look both ways before crossing even if no warning is active.
Drivers must stop within 15 to 50 feet of the nearest rail when signals are activated, gates are lowered, or a train is approaching. Stopping on the tracks (CVC §22452) is a separate violation; never stop on a railroad crossing.
8. Signal Ahead
Shape: Yellow diamond
Color: Yellow with black symbol of a traffic signal
Action: A traffic signal is ahead — prepare to stop if the light is yellow or red. Particularly important on rural roads where signals can come up suddenly after a long stretch of free flow.
9. Merge
Shape: Yellow diamond
Color: Yellow with black arrow showing two lanes joining
Action: Another lane is about to merge into yours (or yours into another). Adjust speed and position to allow safe merging.
California requires drivers in the through lane to yield to merging traffic where the merge sign is posted on the through-lane side, but generally driver courtesy and the zipper-merge convention is the safer practice.
10. Lane Ends (Merge Right or Merge Left)
Shape: Yellow diamond
Color: Yellow with black arrow showing the lane closing
Action: The lane you are in is about to end. Signal and merge into the open lane safely well before the lane physically closes.
Other signs you should know
Beyond the top 10, the California knowledge test commonly asks about:

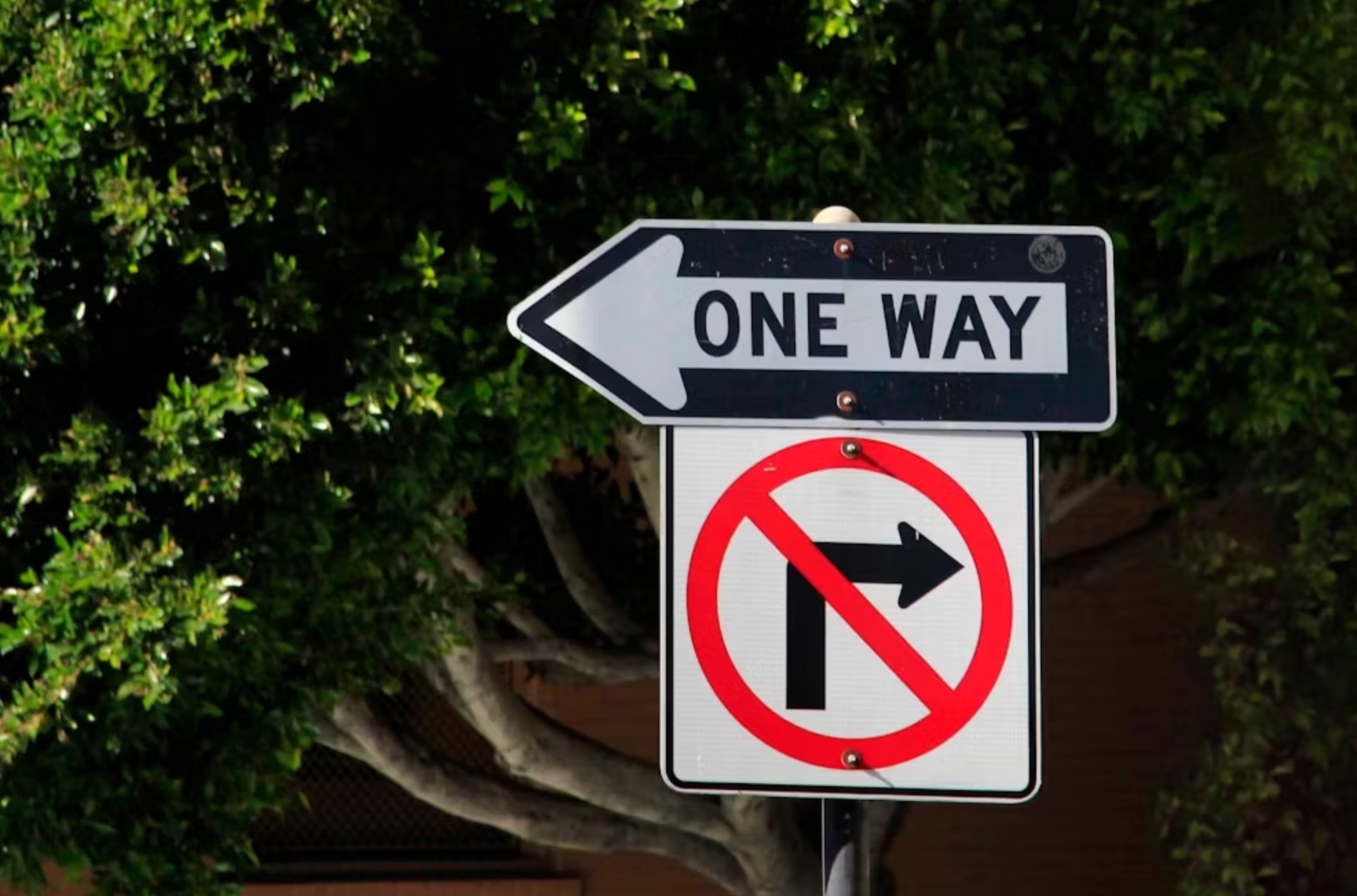

- One-way street — black rectangle with white arrow

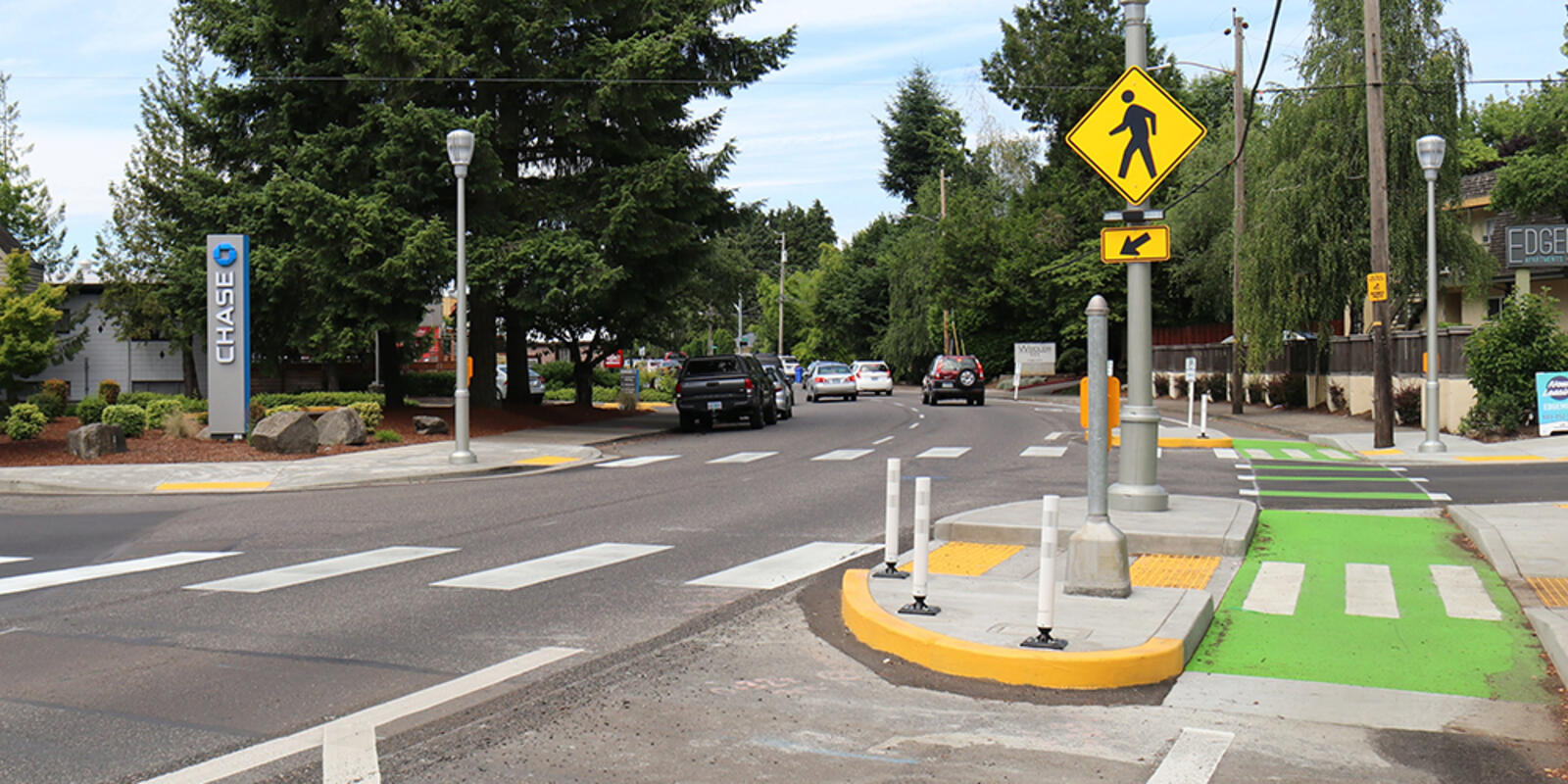

- Pedestrian crossing — yellow diamond with walking figure
- Bicycle route — green or blue rectangle
- Slow Down Move Over — flashing electronic sign on freeway shoulders
- Construction zone — orange diamond (different from yellow)
- No U-turn — circle with U-turn arrow crossed out
- HOV lane — diamond symbol painted on the lane
For deeper test prep covering every sign on the knowledge test, see our California DMV practice tests.
How signs are tested on the DMV exam
The California knowledge test asks roughly 5 of its 46 questions about traffic signs. Question formats:
- "What does this sign mean?" (image shown)
- "This sign warns of:" (image shown, multiple-choice meaning)
- "What color is a regulatory sign?"
- "What shape is the sign that means yield?"
Practice with our traffic signs practice test to drill the question pool.
For a visual tour of every state's driver license design, see our full guide.
